Stroke Tab¶

The Stroke Tab is used to design and control device motion patterns.
You can control the movement of each axis over time to create physical motion patterns such as vibration, rotation, and reciprocation.

All stroke data is saved inside the project under Asset/Stroke/,
and supports importing and exporting compatible formats like .funscript.

1. Basic Interface¶

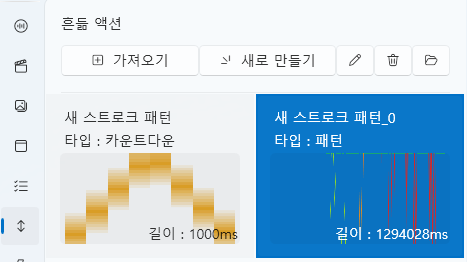

stroke-main

Component	Description
① Import	Loads a saved stroke (`.stroke`) file.
② New	Creates a new stroke pattern.
③ Edit ✏️	Opens the detailed editor window for the selected stroke.
④ Delete 🗑️	Removes the selected stroke from the project.
⑤ Open Folder 📂	Opens the `Asset/Stroke/` folder directly.

💡 Note:
The Stroke Tab has a layout similar to the Live2D Tab,
allowing you to add or edit motion patterns in the “Motion Action” list.

2. Stroke Editor¶

Click “New” or “Edit” to open the
Stroke Editor window.
Here, you can directly adjust the movement, speed, and range for each axis.

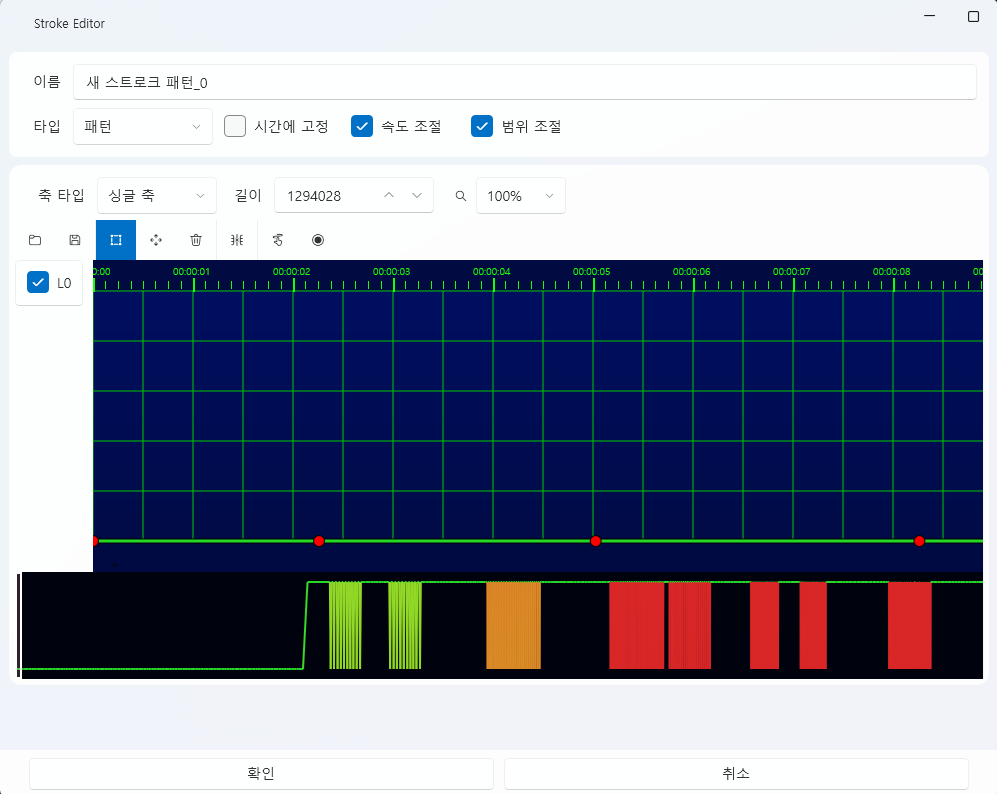

stroke-editor

🎛️ Top Panel¶

Field	Description
Name	Specifies the name of the current stroke pattern.
Type	Selects how the stroke will play.
Run while stopped	Determines whether to continue running the pattern even when the main timeline or playback is stopped.
Fixed Time	Keeps the total duration of the pattern constant.
Speed Control	Determines whether playback speed follows variable input.
Range Control	Determines whether amplitude follows variable input.
Axis Type	Choose between `Single Axis`, `Single Rotation Axis`, or `Multi Rotation Axis`.
Length	Sets total pattern duration in milliseconds.
Scale (%)	Adjusts display zoom for the preview area.

At the top of the Stroke Editor is a toolbar containing essential editing tools.
You can quickly switch between tools and use keyboard shortcuts for efficiency.

stroke-toolbar

Icon	Tool	Shortcut	Description
📂	Import	—	Imports an external `.funscript` file.
💾	Export	—	Saves the current pattern as a `.funscript` file.
⬜	Select Tool	—	Selects points or areas (default editing tool).
✥	Move Tool	M	Moves selected points or curves.
🗑️	Delete	Del	Deletes selected points.
✂️	Trim	—	Keeps only the selected range and removes the rest.
➕	Add Point	—	Adds a new control point by clicking on the graph.
⏺️	Record (Not Supported)	—	Records real-time device motion (currently disabled).

💡 Tip:
You can switch tools instantly with shortcuts.
For example, press M for Move Tool, or S to return to Select Tool.

⚙️ Note:
.funscript is an open motion format widely supported by external devices and software.

🩰 Axis Management¶

The left-side axis list (L0–R2) represents the device’s actual motion axes.
Only checked axes will be active for editing and playback.

Axis	Description
L0–L2	Left-side channels.
R0–R2	Right-side channels.
Enable Checkbox	Toggles axis visibility on the timeline.

🧩 Graph & Timeline¶

The central graph area visualizes the motion of each axis over time.
The horizontal axis represents time (ms), and the vertical axis represents relative position (0–100%).
Motion curves are formed by connecting editable control points.

Horizontal (Time): Time progression (in ms)
Vertical (Value): Axis position (0–100%)
Grid Lines: Help visualize timing and amplitude
Points: Represent adjustable motion values at specific times

🎯 Graph Editing¶

The graph is a static editing interface,
focused on adjusting and adding points rather than playback or zooming.

Function	Description
Select Tool	Click or drag to select multiple points.
Move Tool	Drag selected points to change their position.
Add Point	Click on the graph to add a new control point.
Delete	Press Delete to remove selected points.
Trim	Keeps the selected range and removes all others.

💡 Note:
The Stroke Editor is a static pattern designer —
playback occurs in the Stroke Player, not within this editor.

🗺️ Minimap¶

At the bottom of the graph is a Minimap that shows the entire stroke pattern in miniature.
The visible area is highlighted with a box, and clicking on the minimap moves the view to that section.

Function	Description
Scroll View	Click on the minimap to jump to a specific section.
View Area Box	Highlights the portion currently being edited.
Overview	Displays the full distribution of the motion pattern.

💡 Tip:
The minimap is useful for long patterns,
allowing you to quickly navigate or understand the overall motion structure.

3. Stroke Types¶

The stroke behavior depends on its Type setting.
Four main types are available for different control modes:

3.1 Pattern¶

A time-based automatic stroke.
When placed on the timeline or triggered via script, it plays automatically for its set duration.

Feature	Description
Automatic Playback	Plays automatically when added to the timeline.
Speed / Range Control	Adjustable through “Speed Control” and “Range Control” options.
Loop Playback	Loops repeat automatically on the timeline. When executed via script, it runs for a specified number of times.

3.2 Manual¶

Each press of the Space key triggers one playback cycle.
Ideal for interactive or manual control scenarios.

Feature	Description
Single Playback	Plays once per key press.

3.3 Mouse Control¶

Tracks the mouse movement in real time to control axis positions.
L0 reacts to vertical movement, and R0 to horizontal movement.

Feature	Description
L0 Axis	Follows vertical mouse movement.
R0 Axis	Follows horizontal mouse movement.
Real-Time Control	Responds instantly to mouse position.

3.4 Countdown¶

The Countdown Type dynamically adjusts pattern speed and shape
based on the interaction between Climax Progress and Counter values — a high-level adaptive control mode.

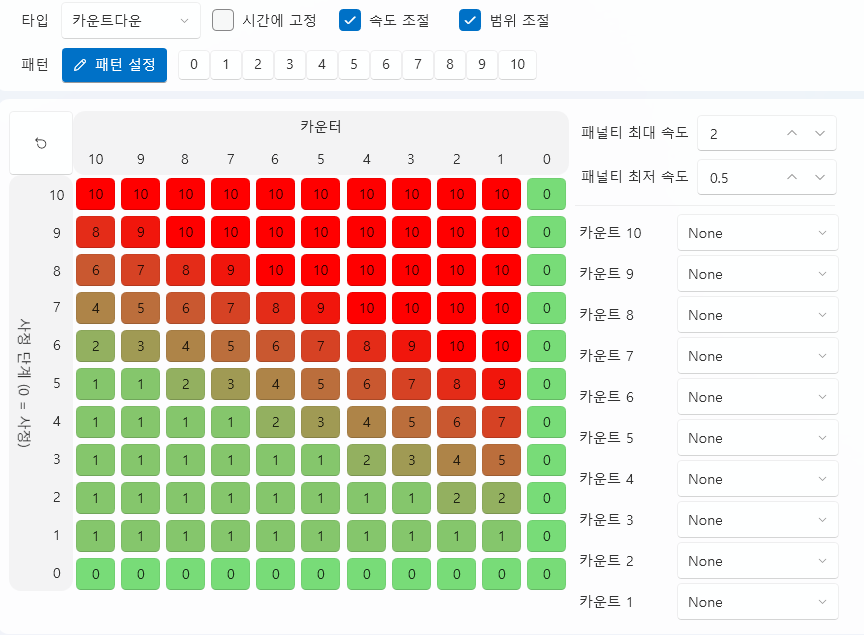

stroke-countdown

Feature	Description
0–10 Level Buttons	Assign a stroke pattern to each counter level.
Pattern Setup Panel	Configure which pattern plays for each counter-progress combination.
Reset Button	Resets the pattern grid to default.
Grid Panel	Horizontal axis = Counter, Vertical axis = Climax Progress. Each cell represents a pattern number (Left click = increase, Right click = decrease).
Counter Sound	Defines the sound to play with each count.

⚙️ Speed Adjustment (Penalty Speed)¶

Feature	Description
Max Penalty Speed	When the counter is far below the climax progress, playback accelerates.
Min Penalty Speed	When the counter is close to the climax progress, playback slows down.

💡 Example:
- Counter = 1, Progress = 10 → Maximum acceleration
- Counter = 10, Progress = 1 → Maximum slowdown

4. Script Integration¶

Command	Description
StrokeExec	Plays a specific stroke for a given duration.

💡 Tip:
You can drag and drop strokes directly onto the timeline
and synchronize them with other resources such as sounds or Live2D.

5. File Structure¶

Item	Path
Stroke Data	`Asset/Stroke/StrokeName.stroke`
Preview Cache	`Asset/Stroke/`

⚙️ Note:
Stroke data files are project-specific.
Moving or renaming them may cause timeline links to break.

6. Stroke Sound Settings¶

In the Stroke tab, you can link sounds to motions (strokes).
This allows you to play rhythmic sound effects or interactive audio
based on the stroke’s position, speed, and range.

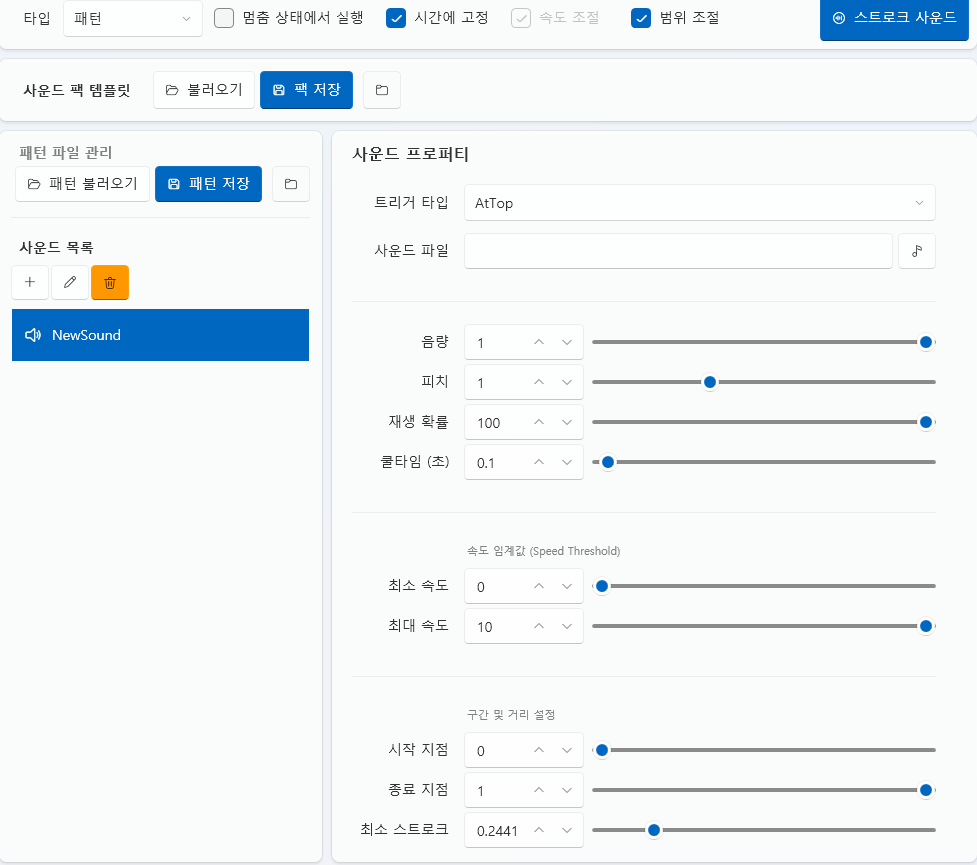

stroke-sound

🔊 Sound Pack Templates¶

Item	Description
Load	Loads a previously saved sound pack template.
Save Pack	Saves the current sound combination as a sound pack.

📁 Pattern File Management¶

Item	Description
Load Pattern	Loads a saved sound pattern.
Save Pattern	Saves the current sound pattern.

📃 Sound List¶

The left panel displays a list of sounds linked to the current stroke.

Button	Description
➕ Add	Adds a new sound.
✏️ Edit	Edits the selected sound.
🗑️ Delete	Removes the selected sound.

6.1 Sound Properties¶

When a sound is selected from the list,
the Sound Property panel appears on the right.

🎯 Basic Settings¶

Item	Description
Trigger Type	The condition under which the sound is played (`Continuous`, `AtTop`, `AtBottom`, `MovingUp`, `MovingDown`, etc.)
Sound Files	List of sound files to play (multiple files can be specified).
Volume	Output volume of the sound.
Pitch	Playback pitch of the sound.
Play Probability	Probability that the sound will be played (%).
Cooldown (sec)	Minimum interval before the sound can be played again.

💡 If multiple sound files are registered,
one is selected randomly during playback.

⚡ Speed Threshold¶

Limits sound playback based on the stroke speed.

Item	Description
Minimum Speed	Sound is played only when the speed is equal to or greater than this value.
Maximum Speed	Sound is not played when the speed exceeds this value.

💡 Useful when you want sounds to play only during fast strokes.

📏 Range & Distance Settings¶

Controls sound playback based on position range and minimum movement distance.

Item	Description
Start Position	Starting range where the sound is valid.
End Position	Ending range where the sound is valid.
Minimum Stroke	Minimum movement distance required to play the sound.

💡 Helps filter out sounds caused by small or subtle movements.

🔄 Playback Flow Example¶

A stroke is executed
The configured trigger type is reached
Speed / position / minimum stroke conditions are checked
Play probability is evaluated
If all conditions are met, the sound is played
Playback is restricted during the cooldown period

6.2 Usage Tips¶

Enhance the rhythm of strokes
Increase immersion when used with Countdown or Pattern types
