🎧 Advanced Sound Control (Left/Right Audio Panning)¶
In this tutorial, you will learn how to create a natural Left → Right → Center
audio movement effect — commonly known as panning.
VSP allows precise audio positioning by controlling the Balance value of a sound. This makes complex sound motion easy to configure using scripts.
A very important concept covered in this tutorial:
- “Duration” does not block script execution
- To create sequential motion, you must explicitly use
"Wait for N seconds"
1️⃣ Importing Sound¶
- Open the Sound tab in the left sidebar
- Click Import
- Select your mp3 file
- Once imported, it will appear in the sound list
2️⃣ Adding Sound to the Timeline¶
- Drag your mp3 into an Audio Track
- Drop it at the desired position on the timeline
You can now control the sound through scripts.
3️⃣ Understanding Balance (Left/Right Position)¶
Balance controls the horizontal pan of a sound:
- -1.0 → Hard Left
- ** 0.0 → Center**
- +1.0 → Hard Right

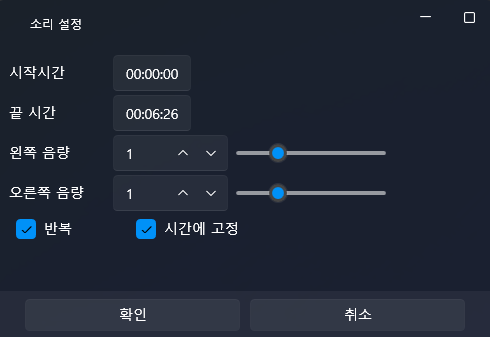

When double-clicking a sound on the timeline,
you can adjust left/right volume individually,
but Balance can only be controlled through scripts.
⚠ Very Important¶
“Duration” does NOT block execution¶
Example:
Balance = 1 (Duration: 3 seconds)
What actually happens?
- Balance smoothly transitions over 3 seconds ✔
- The script immediately continues to the next action ✘
(it does not wait 3 seconds)
So to ensure proper ordering you must add:
Wait for [3 seconds]
This is the only way to delay the next action.
4️⃣ Creating a Panning Script¶
Left → Right → Center
Target movement:
1) Instantly move sound to the left
2) Move to the right over 2 seconds
3) Move back to center over 1 second
📌 Correct Script Structure (Sequential)¶
1. Move instantly to the left¶
Balance = -1 (Duration: 0s)
2. Move to the right over 2 seconds¶
Balance = 1 (Duration: 2s)
3. Wait 2 seconds¶
Wait = 2s
4. Move to center over 1 second¶
Balance = 0 (Duration: 1s)
5. Wait 1 second¶
Wait = 1s
This ensures motion happens in the correct order.
📌 Why is this necessary?¶
Because:
- “Duration” only performs lerp interpolation
- It does not pause script execution
Therefore, to create proper timing:
1) Set Balance with Duration
2) Wait for the same duration
These two must always be paired.

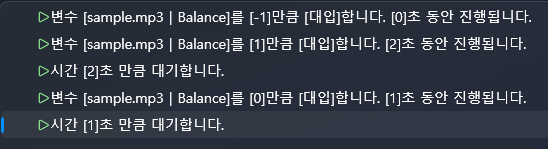

5️⃣ Script Example Preview¶
6️⃣ Variable-Based Sound Movement (Optional)¶
Using variables allows smoother and reusable sound transitions.
Example:
1) Lerp = 0
2) Lerp = 1 (over 3 seconds)
3) Balance = Lerp
4) Wait 3 seconds
Benefits:
- Reusable in many scenes
- Easily combined with UI sliders
- Works with device axes such as X0
- Useful for mini-games or reactive sound design
7️⃣ Real-Time Balance Control with a UI Slider¶
This feature is frequently used for:
- ASMR channel testing
- Audio option menus
- VR sound direction calibration
- Debug panels (device axis testing)
- Mini-games involving audio control
We will now create an interactive slider UI
where moving the slider immediately updates the sound position.
7-1️⃣ Adding the Slider UI¶
- Go to the UI tab → Create a new UI
- Drag Slider from the control list onto the canvas
-

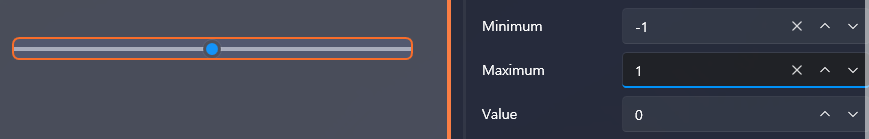

Set these properties:
-
Minimum = -1
- Maximum = 1
- Value = 0
7-2️⃣ Creating a Script for Slider Value Change¶
- Select the Slider
- Right panel → Script → ValueChanged → Edit
- A new inline script editor appears
7-3️⃣ Script Structure¶
Bind the slider value directly to Balance:
Balance ← UI → Slider → Value
This one action is enough.
No Tick Script required.
Balance updates instantly as the slider moves.
7-4️⃣ Result¶
- Slide to the left → Sound pans to the left
- Slide to the right → Sound pans to the right
- Slider in center → Balanced center
You now have a fully interactive real-time audio direction controller.
8️⃣ Summary¶
In this tutorial you learned:
✔ How to control audio Balance (left/right panning)
✔ Why “Duration” is not blocking
✔ How to use waits to create proper timing
✔ Left → Right → Center movement
✔ Variable-based movement
✔ Real-time UI slider control
✨ Next Tutorial¶
Next topic: Subtitle Detection
