Simple Choices & Branching

In this tutorial, we will continue using the project created in the previous chapter (Making Audio Look Like a Video + Subtitles).
During playback, a choice UI will appear, and depending on the user’s selection, the flow will branch into:

• Continue
• Skip
• Exit

We will implement a simple branching system.

---

🧭 Overview of the Final Flow

You will build a structure like this:

1. Track pauses at a specific timestamp
2. Choice UI appears on screen
3. Button click →
4. Resume
5. Jump to a specific position
6. Exit

---

1️⃣ Creating a Branching UI

We will create a dedicated UI screen that shows the three choice buttons.

---

📌 Create a New UI Screen

1. Go to the UI tab
2. Click New UI
3. A new UI screen will be created

---

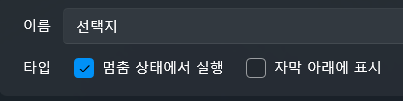

📌 Enable “Execute When Paused”

For the UI to remain interactive while the track is paused,
you must enable this option in the UI properties:

• Execute When Paused ✔

---

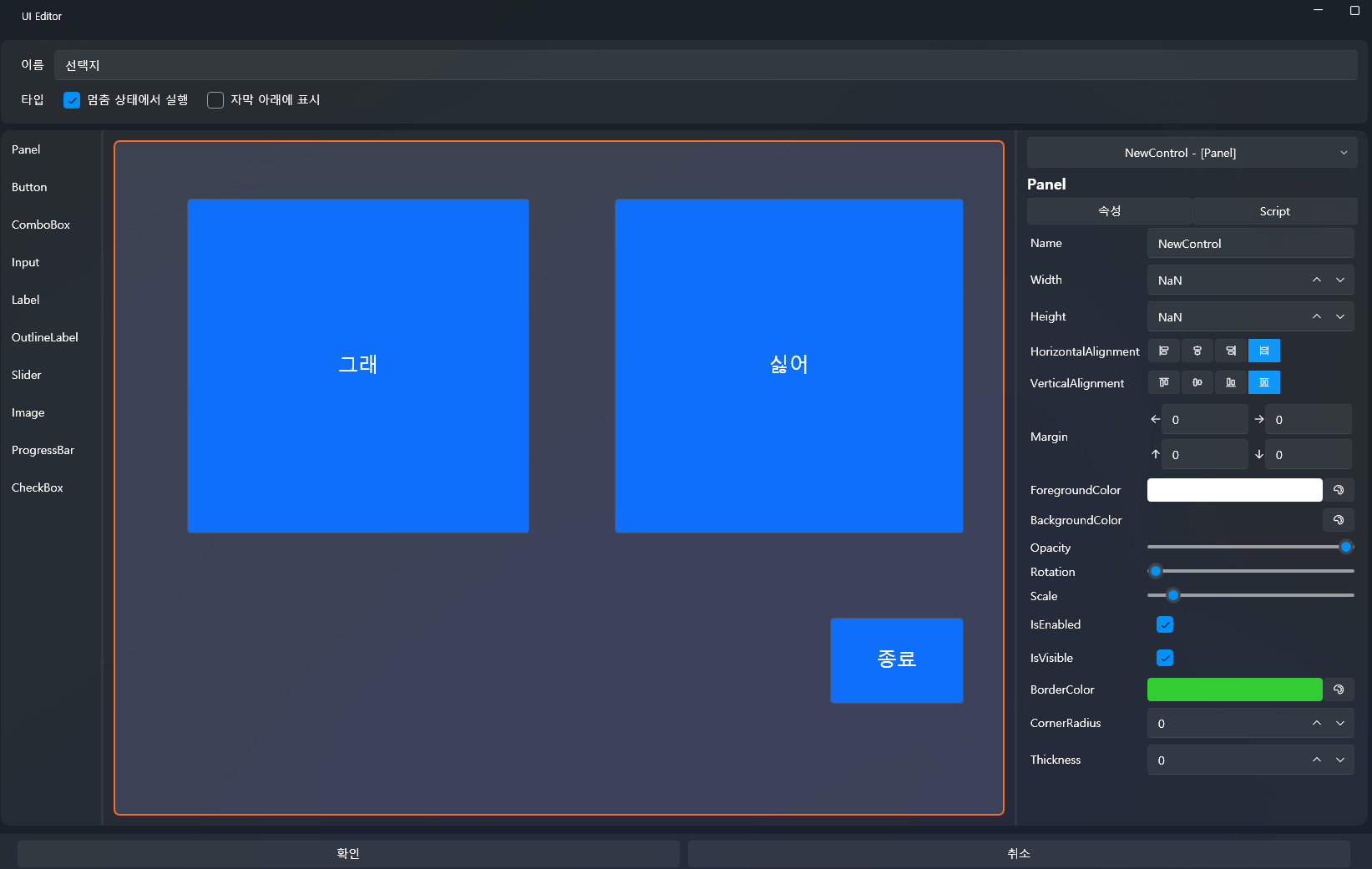

1-2️⃣ Creating the Three Choice Buttons

We will place three buttons on the UI:

• Yes, let’s eat ice cream
• No
• Exit

Drag the Button control from the left control list three times and place them on the screen.

---

💡 TIP: Button Layout & Design

• Change Alignment to Center to place the buttons nicely in the middle
• Edit the display text in the Content field
• Adjust FontSize, Width, Height as needed

---

3️⃣ Placing an Inline Script on the Timeline

This branching system uses an Inline Script,
not a Global Script.

Inline scripts are best used for actions that trigger at specific moments on the timeline.

---

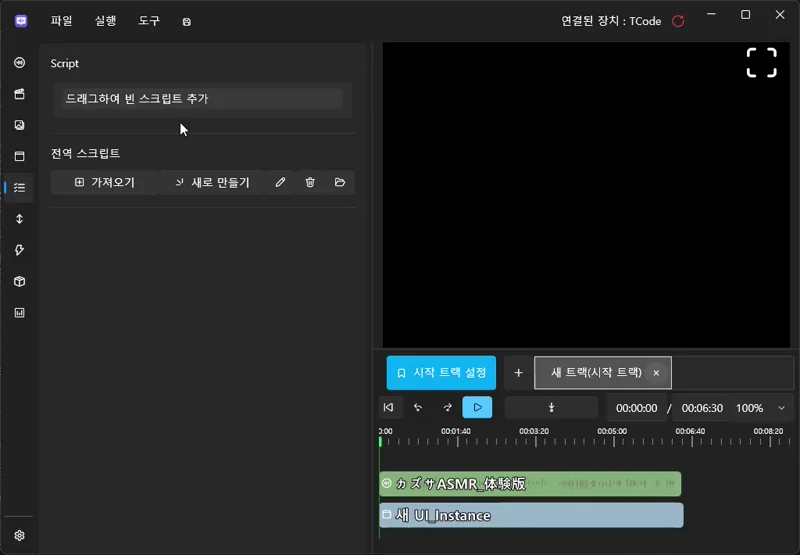

📌 Adding an Inline Script

1. In the left Script panel, drag
   “Drag to Add Empty Script”
2. Drop it onto the Script Track on the timeline

---

⏱ Aligning the Script Timing

Move the script block to the exact position:

01:31.000 (1 minute 31 seconds)

At this moment in playback:

• The track will pause
• The choice UI will appear

---

3-1️⃣ Double-click to Edit the Inline Script

Double-click the script block to open the script editor.

Insert the following two actions:

---

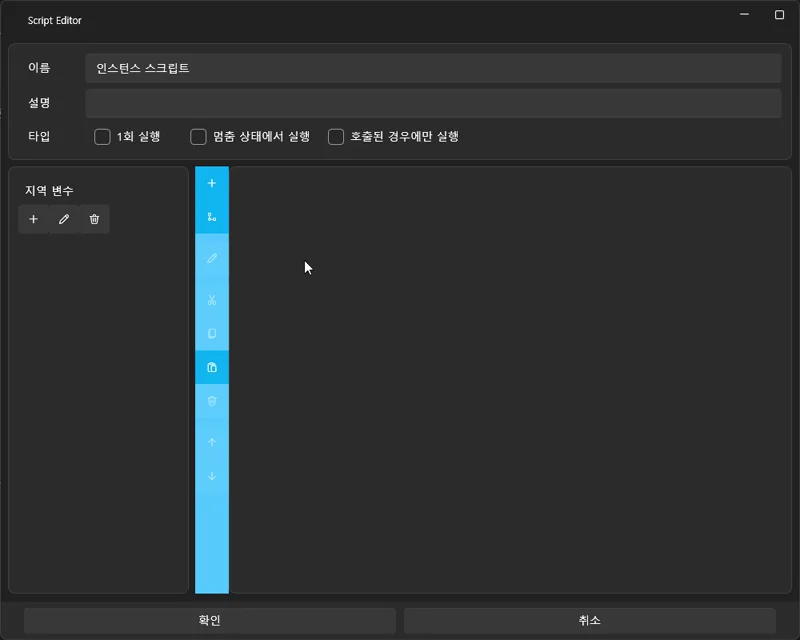

✨ ShowChoiceUI Script Structure

Inside the script editor, add:

1. UI Show → Your Choice UI Screen
2. Displays the choice UI
3. Track Pause
4. Pauses the track until a button is pressed

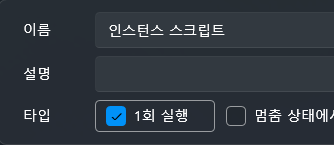

⚠ IMPORTANT
To prevent the UI from repeatedly appearing every frame,
enable Run Once for this script.

Example:

---

Once playback reaches 01:31.000:

• The track will pause
• The UI will pop up
• The user can choose an action

---

4️⃣ Connecting Behavior to Each Choice Button

Now we will set what each of the three buttons does when clicked.

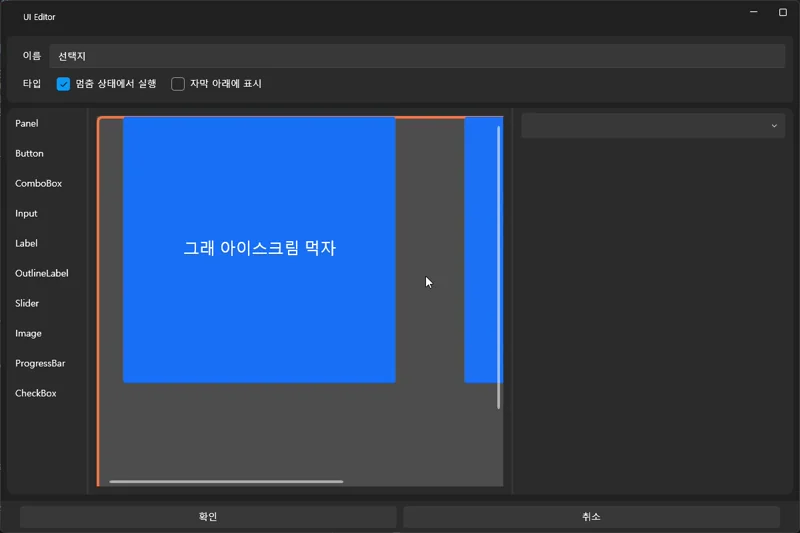

To configure a button:

UI Editor → Select Button → Script → Click Event → Edit

---

📌 Opening the Click Event Editor

1. Go to the UI tab
2. Click the desired button (e.g., Resume)
3. In the right properties panel, go to Script
4. Under Click, press Edit
5. The event script editor opens

---

✔ “Resume” Button

This button resumes the paused track.

Add these actions:

• Close UI
• Resume Track

---

✔ “Skip to Specific Time” Button (Jump Track)

Moves playback to a specific timestamp.

Example: Jump to 00:01:20.000.

Add these actions:

1. Close UI
2. Jump to Time
3. Resume Track

---

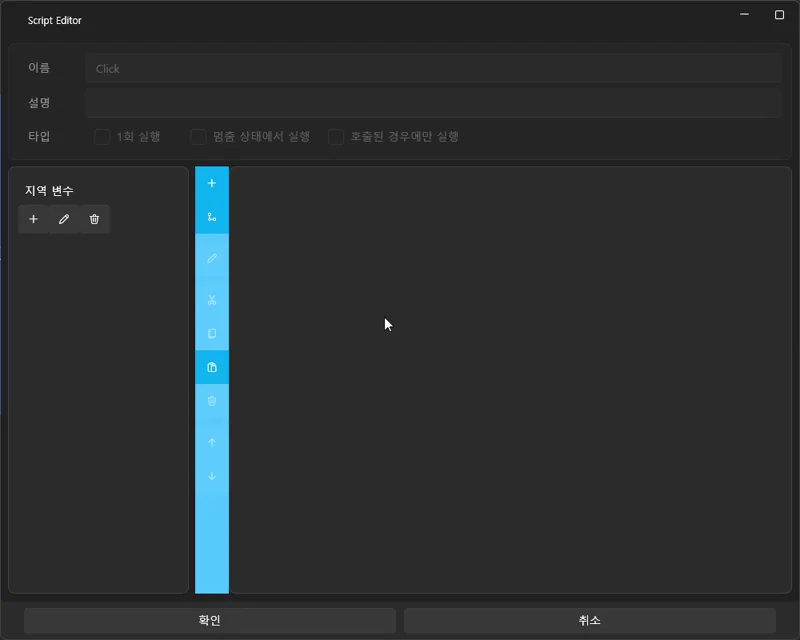

✔ “Exit” Button

Ends the project immediately.

Add:

• Exit Project

This action performs a real exit only during playback mode.

---

✨ Result

The three buttons now behave as follows:

• Resume → Close UI + Resume
• Skip → Close UI + Jump + Resume
• Exit → End Project

The UI works while the track is paused because we enabled
Execute When Paused in the UI properties.

---

6️⃣ Full Flow Summary

• Branch point reached
• Inline Script triggers → Show UI + Pause
• User makes a choice
• Each button triggers a different flow:
• Resume → Continue
• Skip → Jump
• Exit → Stop

---

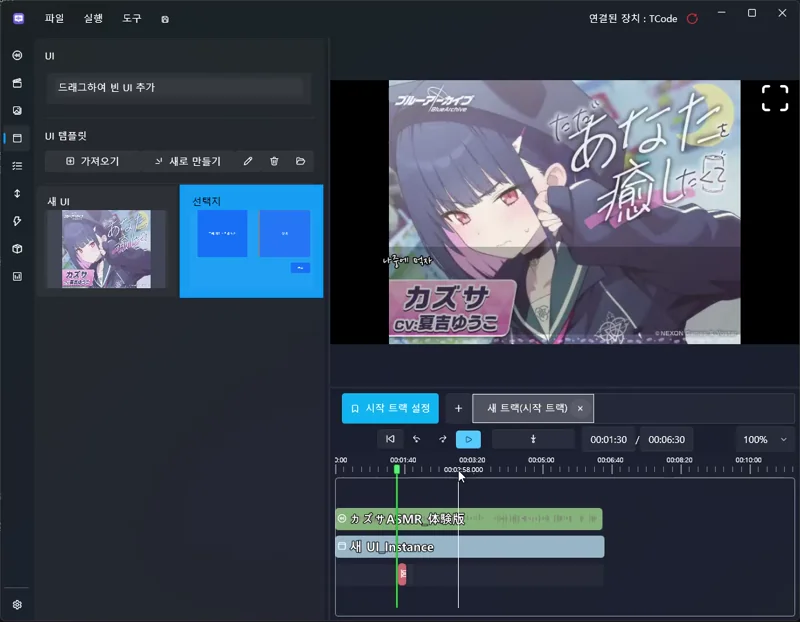

✨ Completed Example

You now have a working:

• Pausing point
• Popup choice UI
• Three branching paths

This system can be extended into a full menu or interactive sequence.

Next tutorial: Intermediate Logic — Variables & Conditions

👉 Variables & Logic
