Timeline Overview

The Timeline in VoiceScriptPlayer is the core system that manages playback intervals for sound, video, Live2D, UI, and special events.
All resources are organized into tracks, and each track contains one or more nodes that define playback timing.

1. Basic Structure

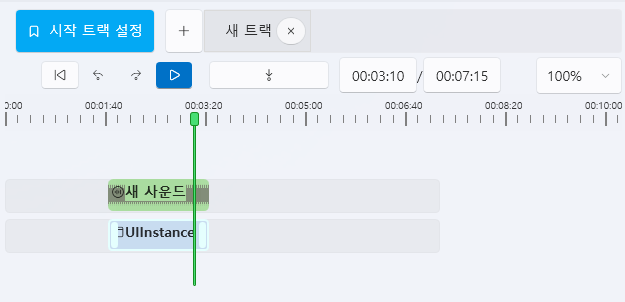

timeline-overview

The timeline consists of the following areas:

Area Description
Track List Displays all tracks created in the current project.
Add / Delete Track Buttons Use the + New Track button to create new tracks.
Start Track Setting Defines the base track that playback begins from when running the player.
Playback Controls Includes ▶ Play / ⏸ Pause / ⏮ Rewind buttons.
Time Ruler The upper ruler shows current time and total duration.
Zoom Hold Ctrl + Mouse Wheel to zoom in or out of the timeline.

2. Track Management

  • Each track can contain sound, video, Live2D, or UI events.
  • You can double-click the track name to rename it.
  • Tracks can be reordered by dragging.
  • When you select a track, its nodes appear on the timeline.

💡 Tip:
For complex projects, organizing tracks by resource type
makes management and debugging much easier.

3. Nodes

Each playable resource unit on the timeline is called a node.
Examples include an audio clip, a video section, or a Live2D motion.

Action Description
Drag to Add Drag resources from the left panel onto the timeline.
Move Position Drag nodes to adjust their start times.
Resize Drag the edges to extend or shorten the playback duration.
Copy / Paste Use Ctrl + C and Ctrl + V to duplicate nodes.
Delete Use the Delete key or right-click menu to remove nodes.

4. Node Editing

Right-clicking a node opens a context menu with various editing options:

Menu Description
Edit Condition Makes the node play only when certain conditions (variables or triggers) are met.
Edit Time Set the exact start and end times manually.
Copy / Paste Duplicate nodes to other tracks or time positions.

⚙️ Example Conditions:
- Only play when variable Flag_A is active.
- Trigger when a specific event (e.g., a choice result) is true.
- Prevent repeated playback, etc.

5. Time Selection and Range Editing

You can drag across the time ruler to select a range on the timeline.
This allows bulk editing across all tracks.

timeline-range

🔹 Selecting a Range

  • Drag along the time ruler; the selected range will appear in green.
  • The selected range applies to all tracks simultaneously (sound, Live2D, events, etc.).

🔹 Right-Click Menu

Right-clicking within the selected range displays the following options:

Menu Description
Insert Time Inserts time into the selected range and shifts all subsequent nodes forward.
Delete Range Deletes the selected section and shifts later nodes backward.
Keep Only Range Removes all content outside the selected range.

⚙️ Example:
Selecting 3–6 minutes and choosing “Keep Only Range”
keeps only that segment, resetting the timeline from 0 seconds.

🔹 Usage Tips

  • Useful for previewing specific scenes in long projects.
  • Helps remove unnecessary empty spaces.
  • “Insert Time” is convenient for adding quick gaps between events.

💡 Tip:
Range selection works on a time-based level,
allowing you to rearrange large sections without touching individual nodes.

6. Time Controls

The time controller at the top of the timeline lets you directly manipulate playback position and duration.

Function Description
Current Time Manually input or drag the slider to change the playback position.
Total Duration Sets the overall length of the timeline.
Zoom Use Ctrl + Mouse Wheel to zoom in/out.
Play / Pause / Loop Plays or previews with the same logic as the main player.

7. Node Condition System

The VoiceScriptPlayer timeline doesn’t just follow playback order —
it also supports logical conditions (Conditions) to control node activation.

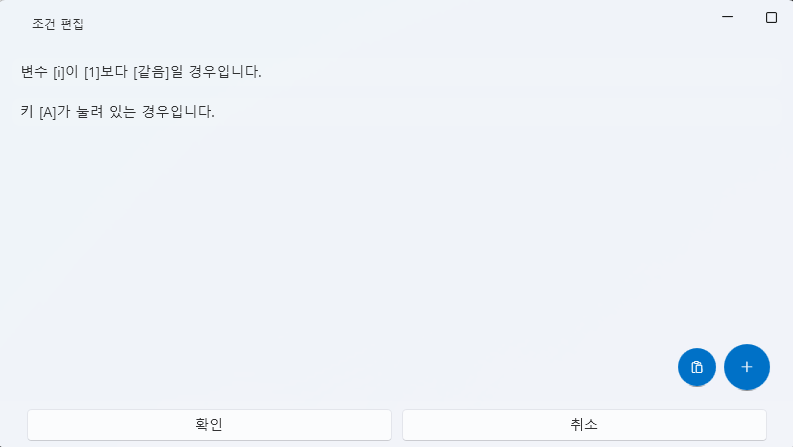

node-condition

These conditions work in sync with variables and triggers defined in the Script Tab.

8. Preview and Synchronization

  • Press ▶ at the bottom to preview all tracks.
  • During preview, sound, Live2D, and UI operate together,
    simulating the exact same behavior as in the actual player.
  • To test specific parts, set the Start Track accordingly.

💡 Tip:
When dealing with complex multi-track setups,
use the Condition Editor to test different branching scenarios easily.
