Stroke Tab¶
The Stroke Tab is used to design and control device motion patterns.
You can control the movement of each axis over time to create physical motion patterns such as vibration, rotation, and reciprocation.
All stroke data is saved inside the project under Asset/Stroke/,
and supports importing and exporting compatible formats like .funscript.
1. Basic Interface¶
| Component | Description |
|---|---|
| ① Import | Loads a saved stroke (.stroke) file. |
| ② New | Creates a new stroke pattern. |
| ③ Edit ✏️ | Opens the detailed editor window for the selected stroke. |
| ④ Delete 🗑️ | Removes the selected stroke from the project. |

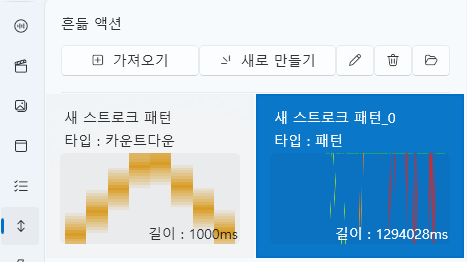

| ⑤ Open Folder 📂 | Opens the Asset/Stroke/ folder directly. |
💡 Note:
The Stroke Tab has a layout similar to the Live2D Tab,
allowing you to add or edit motion patterns in the “Motion Action” list.
2. Stroke Editor¶
Click “New” or “Edit” to open the
Stroke Editor window.
Here, you can directly adjust the movement, speed, and range for each axis.
🎛️ Top Panel¶
| Field | Description |
|---|---|
| Name | Specifies the name of the current stroke pattern. |
| Type | Selects how the stroke will play. |
| Fixed Time | Keeps the total duration of the pattern constant. |
| Speed Control | Determines whether playback speed follows variable input. |
| Range Control | Determines whether amplitude follows variable input. |
| Axis Type | Choose between Single Axis, Single Rotation Axis, or Multi Rotation Axis. |
| Length | Sets total pattern duration in milliseconds. |
| Scale (%) | Adjusts display zoom for the preview area. |
🧰 Toolbar¶
At the top of the Stroke Editor is a toolbar containing essential editing tools.
You can quickly switch between tools and use keyboard shortcuts for efficiency.
| Icon | Tool | Shortcut | Description |
|---|---|---|---|
| 📂 | Import | — | Imports an external .funscript file. |
| 💾 | Export | — | Saves the current pattern as a .funscript file. |
| ⬜ | Select Tool | — | Selects points or areas (default editing tool). |
| ✥ | Move Tool | M | Moves selected points or curves. |
| 🗑️ | Delete | Del | Deletes selected points. |
| ✂️ | Trim | — | Keeps only the selected range and removes the rest. |
| ➕ | Add Point | — | Adds a new control point by clicking on the graph. |
| ⏺️ | Record (Not Supported) | — | Records real-time device motion (currently disabled). |
💡 Tip:
You can switch tools instantly with shortcuts.
For example, pressMfor Move Tool, orSto return to Select Tool.⚙️ Note:
.funscriptis an open motion format widely supported by external devices and software.
🩰 Axis Management¶
The left-side axis list (L0–R2) represents the device’s actual motion axes.
Only checked axes will be active for editing and playback.
| Axis | Description |
|---|---|
| L0–L2 | Left-side channels. |
| R0–R2 | Right-side channels. |
| Enable Checkbox | Toggles axis visibility on the timeline. |
🧩 Graph & Timeline¶
The central graph area visualizes the motion of each axis over time.
The horizontal axis represents time (ms), and the vertical axis represents relative position (0–100%).
Motion curves are formed by connecting editable control points.
- Horizontal (Time): Time progression (in ms)
- Vertical (Value): Axis position (0–100%)
- Grid Lines: Help visualize timing and amplitude
- Points: Represent adjustable motion values at specific times
🎯 Graph Editing¶
The graph is a static editing interface,
focused on adjusting and adding points rather than playback or zooming.
| Function | Description |
|---|---|
| Select Tool | Click or drag to select multiple points. |
| Move Tool | Drag selected points to change their position. |
| Add Point | Click on the graph to add a new control point. |
| Delete | Press Delete to remove selected points. |
| Trim | Keeps the selected range and removes all others. |
💡 Note:
The Stroke Editor is a static pattern designer —
playback occurs in the Stroke Player, not within this editor.
🗺️ Minimap¶
At the bottom of the graph is a Minimap that shows the entire stroke pattern in miniature.
The visible area is highlighted with a box, and clicking on the minimap moves the view to that section.
| Function | Description |
|---|---|
| Scroll View | Click on the minimap to jump to a specific section. |
| View Area Box | Highlights the portion currently being edited. |
| Overview | Displays the full distribution of the motion pattern. |
💡 Tip:
The minimap is useful for long patterns,
allowing you to quickly navigate or understand the overall motion structure.
3. Stroke Types¶
The stroke behavior depends on its Type setting.
Four main types are available for different control modes:
3.1 Pattern¶
A time-based automatic stroke.
When placed on the timeline or triggered via script, it plays automatically for its set duration.
| Feature | Description |
|---|---|
| Automatic Playback | Plays automatically when added to the timeline. |
| Speed / Range Control | Adjustable through “Speed Control” and “Range Control” options. |
| Loop Playback | Can be set to repeat in a script. |
3.2 Manual¶
Each press of the Space key triggers one playback cycle.
Ideal for interactive or manual control scenarios.
| Feature | Description |
|---|---|
| Single Playback | Plays once per key press. |
3.3 Mouse Control¶
Tracks the mouse movement in real time to control axis positions.
L0 reacts to vertical movement, and R0 to horizontal movement.
| Feature | Description |
|---|---|
| L0 Axis | Follows vertical mouse movement. |
| R0 Axis | Follows horizontal mouse movement. |
| Real-Time Control | Responds instantly to mouse position. |
3.4 Countdown¶
The Countdown Type dynamically adjusts pattern speed and shape
based on the interaction between Climax Progress and Counter values — a high-level adaptive control mode.
| Feature | Description |
|---|---|
| 0–10 Level Buttons | Assign a stroke pattern to each counter level. |
| Pattern Setup Panel | Configure which pattern plays for each counter-progress combination. |
| Reset Button | Resets the pattern grid to default. |

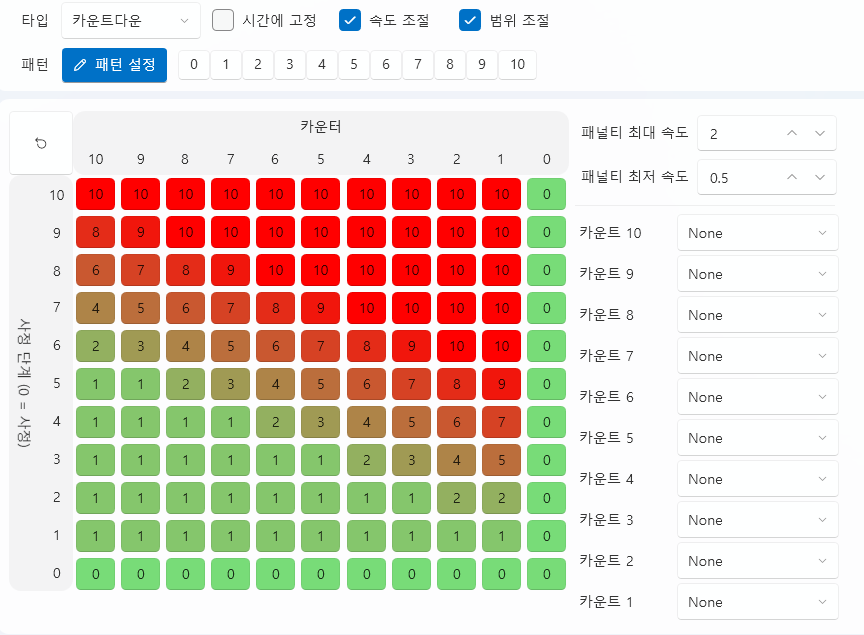

| Grid Panel | Horizontal axis = Counter, Vertical axis = Climax Progress. Each cell represents a pattern number (Left click = increase, Right click = decrease). |
| Counter Sound | Defines the sound to play with each count. |
⚙️ Speed Adjustment (Penalty Speed)¶
| Feature | Description |
|---|---|
| Max Penalty Speed | When the counter is far below the climax progress, playback accelerates. |
| Min Penalty Speed | When the counter is close to the climax progress, playback slows down. |
💡 Example:
- Counter = 1, Progress = 10 → Maximum acceleration
- Counter = 10, Progress = 1 → Maximum slowdown
4. Script Integration¶
| Command | Description |
|---|---|
| StrokeExec | Plays a specific stroke for a given duration. |
💡 Tip:
You can drag and drop strokes directly onto the timeline
and synchronize them with other resources such as sounds or Live2D.
5. File Structure¶
| Item | Path |
|---|---|
| Stroke Data | Asset/Stroke/StrokeName.stroke |
| Preview Cache | Asset/Stroke/ |
⚙️ Note:
Stroke data files are project-specific.
Moving or renaming them may cause timeline links to break.
