Sound Tab¶
The Sound Tab in VoiceScriptPlayer is where you manage the core audio of your project.
It provides tools for subtitle generation (STT), translation, and speech synthesis (TTS).
All tracks and events in the project synchronize based on sound.

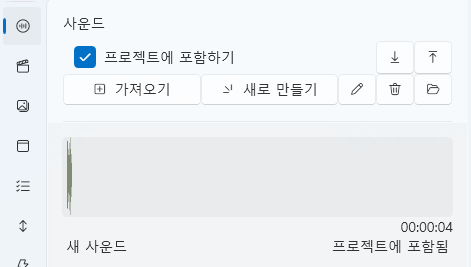

1. Basic Interface¶
The Sound Tab manages all audio files used in your project.
This includes importing files, generating TTS voices, configuring subtitles, and more.
| Element | Description |
|---|---|
| ① Include in Project | When checked, imported sounds are copied into the project folder. When unchecked, they are only referenced externally without being copied. |
| ② Import | Import .wav or .mp3 files from your local drive.Depending on “Include in Project,” files are either copied or referenced. |
| ③ New | Generate new TTS voices. Opens the TTS Creation Window, where your input text is synthesized using a selected voice engine (e.g., COEIROINK). |
| ④ Edit ✏️ | Opens the detail editor for the selected sound. Imported sounds open the Subtitle Editor, while generated TTS sounds open the TTS Editor. |
| ⑤ Delete 🗑️ | Removes the selected sound from the list. |
| ⑥ Export ↗ / Reimport ↙ | Export a sound from the project to an external folder or reimport it back into the project. |
| ⑦ Open Sound Folder 📂 | Opens the folder where the project’s sound files are stored. |
| ⑧ Waveform Preview Area | Displays the waveform and duration of the selected sound. Shows filename, duration, and inclusion status below. |
⚙️ Operation Summary¶
| Action | Result |
|---|---|
| Import with “Include in Project” checked | File is copied into the project folder (Asset/Sound/). |
| Import with it unchecked | File is referenced externally without being moved. |
| Export to external folder | Copies the selected sound to the target folder. |
| Reimport to project | Restores an external file back into the project. |
💡 Tip:
Unchecking “Include in Project” offers several advantages:
- ✅ Smaller project size: Large sound files are not duplicated.
- ⚡ Faster import: Skips the copy process.
- 🛠️ Easy external editing: Changes made externally (e.g., noise removal) update instantly.
- 🧾 Copyright safety: Commercial or licensed audio files can remain external.
However, note that externally referenced sounds are excluded during export,
so other users will not receive the sound files when the project is shared.
2. Subtitle Editing (Medio Editor)¶
Select a sound file and click the ✏️ Edit button to open the
Medio Editor, where you can generate subtitles (STT), translate them, and adjust timing.
🎛️ Basic Layout¶
| Field | Description |
|---|---|
| Name | The name of the sound file currently being edited. |
| Length | Displays the playback range and total duration. |
| AI Settings | Opens settings for STT/translation engines (Whisper, DeepL, etc.) without closing the window. |
| Speech Language | The input language for STT (e.g., Japanese, Korean, English). |
| Translation Language | The target language for translation. |
| Video Preview Window | Displays a live subtitle preview. |
| Subtitle List (Right) | Allows fine-tuning of time ranges and positions for each subtitle. |
🗣️ Converting Speech to Subtitles (STT)¶
- Set the Speech Language.
- Click [Convert Speech to Subtitles].
- The registered STT Engine (e.g., Whisper) will transcribe the audio.
- The result will appear as a timestamped subtitle list.
| Field | Description |
|---|---|
| StartTime / EndTime | Adjust the start and end times of each subtitle. |
| Subtitle Text | The recognized text, editable directly. |
| X / Y | Screen position of the subtitle. |
| FontSize / OutlineSize | Adjust font size and outline thickness. |
| Dock | Choose anchor position (Top / Center / Bottom). |
| Fill / Outline | Set the text and outline colors. |
💡 Note:
Subtitles generated from STT are automatically saved to theAsset/Sound/folder
and can be reused for other audio or video files.
🌐 Subtitle Translation¶
- After generating subtitles, click [Translate Subtitles].
- The selected Translation Engine (DeepL, LibreTranslate, etc.)
automatically translates fromSpeech Language → Translation Language. - Translated subtitles appear alongside the original and can be edited individually.
| Option | Description |
|---|---|
| Auto Translation Engine | Uses the translation API configured in settings. |
| Preview Results | Instantly preview translation output. |
| Apply Edits | Modify translated text directly in the side panel. |
💡 Tips:
- To translate Japanese audio into Korean, set Speech Language = Japanese, Translation Language = Korean.
- Translated subtitles are saved with the original and displayed automatically during playback.
▶️ Preview and Verification¶
- Use the ▶ Play button to check subtitle timing.
- The slider lets you inspect specific time segments.
⚙️ Related AI Settings:
- AI → Whisper
- AI → DeepL
- AI → LibreTranslate
📦 Output Location¶
| Type | Path |
|---|---|
| STT Subtitle File | Asset/Sound/<original_filename>.srt |
3. Speech Synthesis (TTS)¶
Click [New] to open the Audio Editor,
where you can input multiple sentences and assign different synthesis settings per sentence.
Engines such as COEIROINK and Hailuo allow natural voice generation for each dialogue unit.
🧩 Key Improvements¶
| Feature | Description |
|---|---|
| Multi-Sentence Input | Enter multiple lines and synthesize each independently. |
| Per-Sentence Settings | Customize voice, pitch, speed, and volume for each line. |
| Dedicated Timeline | A new TTS timeline functions just like video or event tracks. |
| Improved Preview | Play individual sentences or preview the entire sequence. |
🎛️ Basic Components¶
| Field | Description |
|---|---|
| Name | The name of the output audio file. |
| Length | Total playback time of all sentences. |
| AI Settings | Opens the configuration window for the selected TTS engine. |
| Text-to-Speech Engine | Choose which engine to use (COEIROINK, Hailuo, etc.). |
| Timeline | Displays sentences as segments on a timeline; duration and position can be adjusted. |
🗣️ Per-Sentence Editing¶
Each sentence is managed as an independent block.
You can modify text, voice settings, and subtitle styles individually.
| Field | Description |
|---|---|
| Text Input | Enter the text to be synthesized. Each line represents a separate sentence. |
| Character Selection | Choose the voice character (e.g., Lirin, Noel, etc.). |
| Speed / Pitch / Intensity / Volume | Adjustable independently per sentence. |
| Subtitle Preview | Displays subtitles for quick sync checking. |
| Subtitle Settings | Set X/Y position, font size, colors, and outline. |
📜 Timeline Controls¶
The new TTS Timeline behaves like other tracks (video, events, etc.).
| Field | Description |
|---|---|
| Sentence Nodes | Each sentence appears as a node; drag to reposition. |
| Segment Length | Adjust node length by dragging edges. |
| Order Change | Reordering sentences automatically updates the timeline. |
| Playback Controls | Supports segment play, full play, and pause. |
💡 Tip:
Synchronize audio, subtitles, and events perfectly via the TTS timeline.
The same shortcuts and editing behaviors apply as other tracks.
🎧 Engine Characteristics¶
🪶 COEIROINK¶
- Japanese open-source speech synthesis engine
- Strong at emotional expression and intonation control
- Local synthesis and instant preview support
- Output format: WAV
- Main parameters:
Speed,Pitch,Volume
🌊 Hailuo¶
- Cloud-based AI speech engine
- Natural pronunciation and smooth transitions
- Multilingual support (Japanese, Korean, English, etc.)
- High-quality synthesis via cloud API
- Main parameters:
Pitch,Intensity,Timbre,Emotion

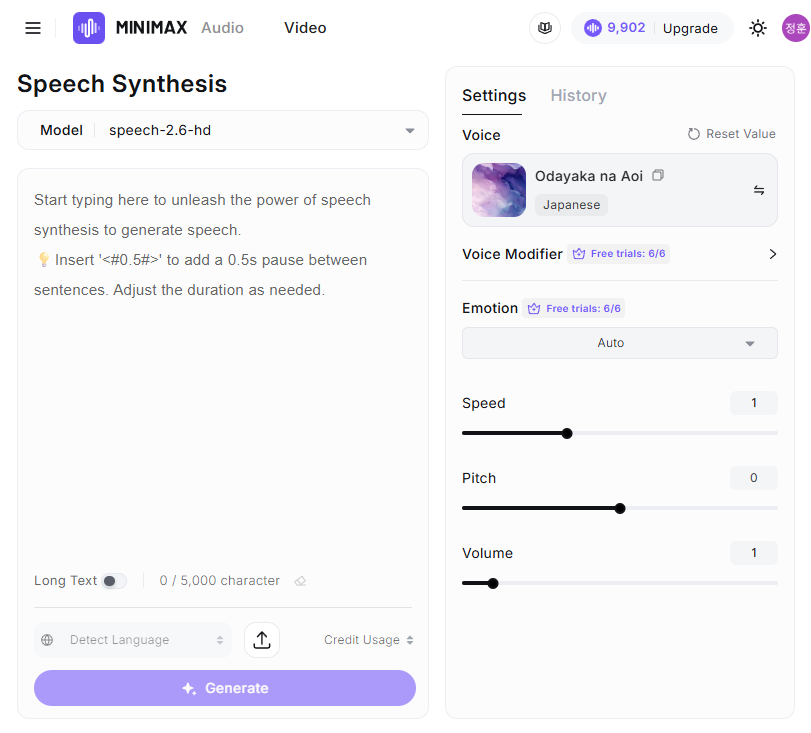

🎧 Try Online
Visit the Hailuo Demo Page
to preview different voice profiles and select styles (female, male, emotional, etc.).
You can then use the same configurations in VoiceScriptPlayer.
▶️ Preview and Synthesis¶
- Click ▶ to instantly play the selected sentence.
- You can play all sentences or preview specific sections.
- Editing text automatically re-synthesizes the result.
📦 Output Location¶
| Item | Path |
|---|---|
| Generated Audio File | Automatically saved in Asset/Sound/. |
| Subtitle Data | Saved as .srt or in project metadata in the same folder. |
💡 Tips¶
- To create emotional or character changes mid-dialogue,
split sentences and apply different settings per line. - You can mix COEIROINK and Hailuo —
for example, use COEIROINK for Japanese lines and Hailuo for Korean narration.
4. Adding to the Timeline¶
Generated or imported sounds can be dragged directly onto the timeline.
- Drag a sound from the left list onto a track to create a node automatically.
- Adjust duration and position in real time.
- Combine multiple sounds for complex layered effects.
💡 Tip:
Sound nodes can be perfectly synchronized with other timeline elements
such as Live2D, UI, and event triggers.

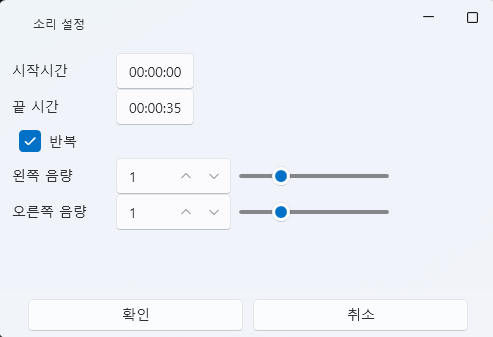

🎚️ Sound Node Settings¶
Sounds added to the timeline can be fine-tuned through the Sound Settings Window.
Right-click a sound node and select “Edit,” or double-click it to open the settings.
| Field | Description |
|---|---|
| Start Time / End Time | Define playback start and end points. |
| Loop | When enabled, repeats the selected section. |
| Left / Right Volume | Adjust stereo balance independently. |
These options allow you to create spatial or looping effects for advanced audio design.
