Script Tab¶
The Script Tab is the core logic system of VoiceScriptPlayer, allowing you to control
all events, interactions, animations, UI, and sounds within a project through
conditions and actions.

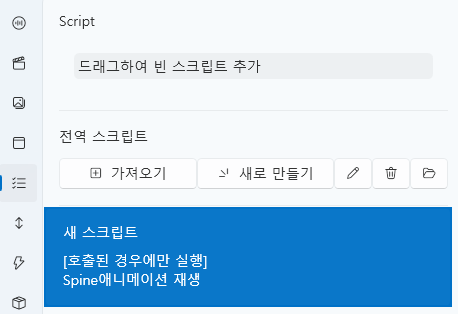

1. Basic Interface¶
| Component | Description |
|---|---|
| ① Drag to Add Script | Creates a new instance script and adds it to the project. |
| ② Global Script | Manages scripts that are always loaded globally. |
| ③ Import | Loads an existing script template. |
| ④ New | Creates a new script template. |
| ⑤ Edit ✏️ | Opens the selected script in the editor. |
| ⑥ Delete 🗑️ | Removes the selected script from the list. |
| ⑦ Open Folder 📂 | Opens the Asset/Trigger/ folder directly. |
💡 Note:
Global scripts are loaded by default, but you can use the “Execute only when called” option to use them as templates.

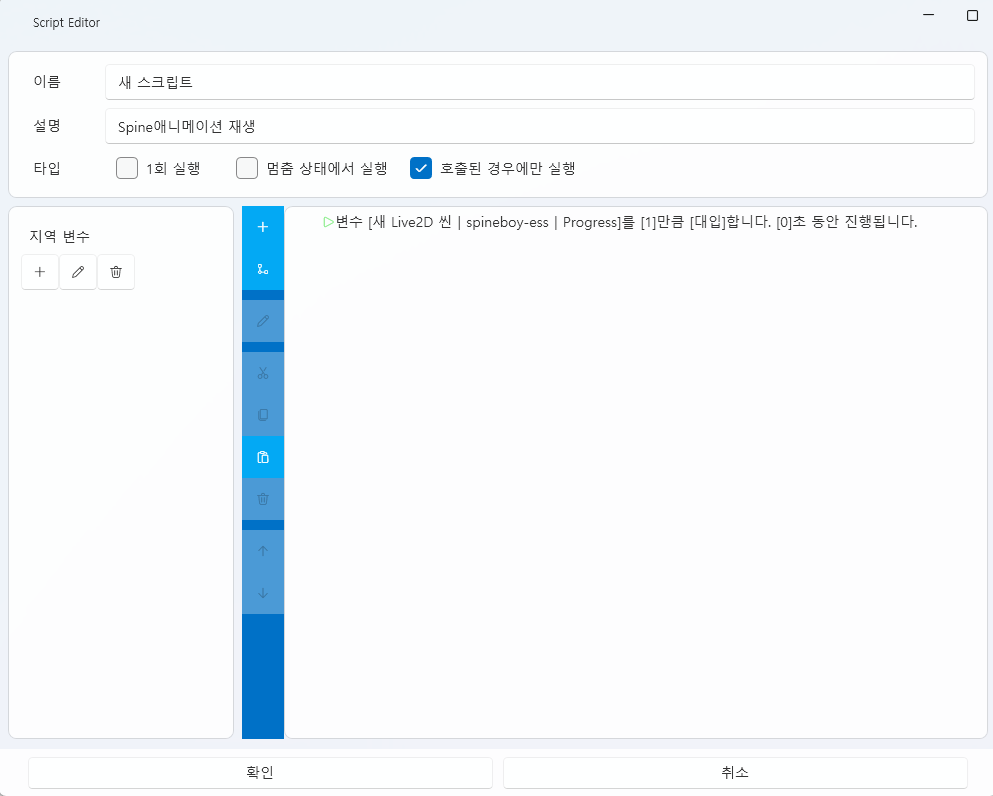

2. Script Editor¶
The script editor allows you to visually construct complex logic by freely combining
Condition and Action blocks.
🧭 Top Panel¶
| Item | Description |
|---|---|
| Name | Assigns a unique name to the script. |
| Description | Adds a short note describing the script’s purpose or function. |
| Run Once | Executes only once and won’t run again. |
| Execute While Paused | Runs even during pause states (useful for menus or settings). |
| Execute Only When Called | Runs only when triggered externally. |
🧩 Local Variables¶
| Function | Description |
|---|---|
| Add (＋) | Creates a new local variable for use within the script. |
| Edit (✏️) | Changes the variable name or initial value. |
| Delete (🗑️) | Removes the selected variable. |
💡 Tip:
Local variables exist only within the current script and do not conflict with global variables.
3. Condition Blocks¶
Condition blocks determine when a script should execute.
You can combine multiple conditions to build detailed trigger logic.
⚙️ Basic Concept¶
- If all conditions evaluate to True, the connected Action block executes.
- Multiple conditions are evaluated with AND logic.
- Use Branch blocks to define different flows for true/false outcomes.
- Refer to Condition List for available condition types.
🧩 Examples¶
| Scenario | Example Condition |
|---|---|
| Specific key pressed | “When key [Space] is pressed.” |
| Voice recognized | “When voice ‘Start’ is detected.” |
| Variable check | “When variable [Score] is greater than or equal to 100.” |
| Subtitle detection | “When subtitle contains ‘Hello’.” |
💡 Tip:
Conditions can link to various resources such as UI, sound, or Live2D.
For example: “If the current track is 1 and the subtitle contains a phrase.”
4. Action Blocks¶
Action blocks define what actually happens when conditions are met.
They control sound playback, variable changes, track movement, UI display, and more.
⚙️ Basic Concept¶
- Actions execute from top to bottom.
- You can insert Wait actions to control timing.
- Combine with loops to create repetitive logic.
- See Action List for available commands.
🧩 Examples¶
| Scenario | Example Action |
|---|---|
| Play sound | “Play sound [Voice01].” |
| Switch track | “Change to track [NextScene].” |
| Modify variable | “Increase variable [Volume] by +10.” |
| Open UI | “Open UI [OptionMenu] with ID [Main].” |
| Control Live2D | “Play animation [smile] for Live2D [Scene01].” |
💡 Note:
Actions can also be time-based, e.g. “Increase variable over 3 seconds,”
or “Transition animation over 2 seconds.”

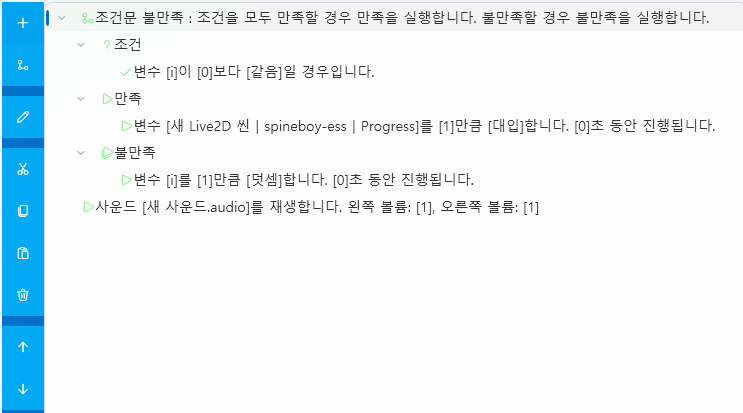

5. Branch Blocks¶
Branch blocks separate behaviors for True and False conditions.
| Section | Description |
|---|---|
| If Block | Executes when the condition is True. |
| Else Block | Executes when the condition is False. |
💡 You can nest multiple branches to create complex event scenarios.
6. Loop Blocks¶
Loop blocks repeatedly execute specific actions while a condition remains True.
| Item | Description |
|---|---|
| Loop Condition | Defines when the loop continues (e.g., key held, event active). |
💡 Useful for continuous responses like “Repeat while key is pressed” or “Wait until subtitle appears.”
7. Combining Conditions & Actions¶
Scripts consist of multiple conditions and actions arranged in sequence.
You can drag to reorder blocks, or use toolbar icons for copy/cut/move operations.
| Icon | Function |
|---|---|
| ➕ | Add new condition or action block |
| 🔀 | Add branch block (If / Else structure) |
| 🔁 | Add loop block (repeat while condition is true) |
| ✏️ | Edit selected block |
| ✂️ | Cut selected block |
| 📋 | Copy / paste block |
| 🗑️ | Delete block |
| ⬆️ / ⬇️ | Move block up or down |
⚙️ Tip:
Script structures can be freely edited, and runtime debugging is supported.
8. Global vs Instance Scripts¶
| Type | Description |
|---|---|
| Global Script | Always loaded and applied throughout the entire project. |
| Instance Script | Linked to a specific track, UI, or event. |
💡 Examples:
- Global: HUD updates, time-based events
- Instance: Scene-specific effects or interaction logic
9. Script Execution Modes¶
| Option | Description |
|---|---|
| Run Once | Executes once when conditions are met. |
| Execute Only When Called | Runs only when invoked by another script or trigger. |
| Execute While Paused | Active even when paused (e.g., in menus). |
| Infinite Loop | Runs continuously while the condition remains True. |
10. Condition List¶
Defines the available conditions that trigger scripts.
🖱️ Keyboard Input¶
🔹 KeyDown¶
Triggered when key [Key] is held down.
- Key: Target key (e.g., A, Space, Enter)
🔹 KeyUp¶
Triggered when key [Key] is released.
- Key: Target key
🔹 KeyPressed¶
Triggered when key [Key] is pressed (Down → Up).
- Key: Target key
🗣️ Speech & Subtitle¶
🔹 SpeechRecognition¶
Triggered when speech [Text] is detected with volume [Volume] and precision [Precision].
- Text: Speech content
- Volume: Minimum volume (0–1)
- Precision: Recognition accuracy (0–1)
🔹 SubtitleRecognition¶
Triggered when subtitles contain [Text].
- Text: Target string
📊 Status & Variable¶
🔹 VariableComparison¶
Checks if variable [Variable] is [Comparison] compared to [Value].
- Variable: Variable name
- Value: Value to compare
- Comparison: >=, <=, >, <, ==, !=
🔹 CurrentTrack¶
Triggered when the current track is [Track].
- Track: Track name or ID
🔹 CumAction¶
Triggered when cum action [CumType] occurs.
- CumType: Action type (All, Edge, etc.)
🔹 RestStatus¶
Triggered when rest state is [Status].
- Status: Active, Inactive
🔹 EventStatus¶
Triggered when event [EventType] has status [EventStatus].
- EventType: Event type
- EventStatus: Active, Inactive
11. Action List¶
Actions define what happens when conditions are met.
⏱️ Time Control¶
🔹 WaitTime¶
Waits for [Seconds] seconds.
- Seconds: Duration
🔊 Sound Control¶
🔹 PlaySound¶
Plays sound [Sound] with left/right volume [LeftVolume], [RightVolume].
- Sound: Sound name
- LeftVolume / RightVolume: Volume ratio (-1–1)
📦 Variable & Track Control¶
🔹 SetVariable¶
Modifies variable [Variable] by [Value] with operation [Modify] over [Seconds] seconds.
- Modify: Set, Add, Subtract, Multiply, Divide, Modulo
🔹 MoveTrack¶
Changes track to [Track].
🔹 SeekTime¶
Sets current track time to [Seconds].
🔹 PauseTrack / ResumeTrack / ToggleTrack¶
Controls playback state.
💾 Data Management¶
🔹 Save / Load¶
Saves or loads current state to Slot:[Slot].
- Slot: Save slot index
🔹 Close¶
Closes the program.
🧩 UI Control¶
🔹 OpenUI / CloseUI¶
Opens or closes UI [UI] with ID [Text].
- UI: UI name
- Text: Instance identifier
🔁 Script Control¶
🔹 TriggerExec / ReturnScript¶
Executes another script or returns from current script.
- Trigger: Script name
💦 Action & Event Control¶
🔹 CumActionExec¶
Forces cum action [CumType].
- CumType: Action type
🔹 RestTime¶
Rest for [Seconds] seconds.
🔹 StrokeExec¶
Executes stroke [Stroke] for [Seconds] seconds.
🎬 Live2D / Spine Control¶
🔹 SpinePlayAnimation¶
Plays animation [Animation] for Spine [Model] in Live2D [Live2D] with [PlayType],
track [TrackIndex], and status [Status].
🔹 SpineSetSkin¶
Sets skin [Skin] for Spine [Model] in Live2D [Live2D].
⚙️ Note:
All conditions and actions are structured visually as block components.
12. File Structure¶
| Item | Path |
|---|---|
| Global Script | Asset/Trigger/ |
⚙️ Warning:
Scripts must be stored inside the project and cannot reference external files.
