Live2D Tab¶

The Live2D Tab is used to create character scenes by placing Spine models and setting up their animations.
All Live2D resources are automatically saved within the project (Asset/Live2D/),
and external reference options are not supported.

1. Main Interface¶

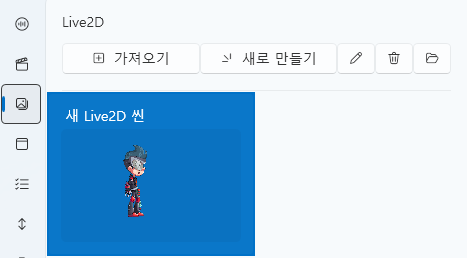

live2d-main

Component	Description
① Import	Load a Live2D Scene (`.live2d`) file.
② New	Create a new Live2D Scene.
③ Edit ✏️	Open the detail editor for the selected scene.
④ Delete 🗑️	Remove the selected scene from the project.
⑤ Open Folder 📂	Open the `Asset/Live2D/` folder directly.

💡 Note:
Live2D scenes are managed entirely within the project and cannot be referenced or exported externally.

2. Live2D Scene Editor¶

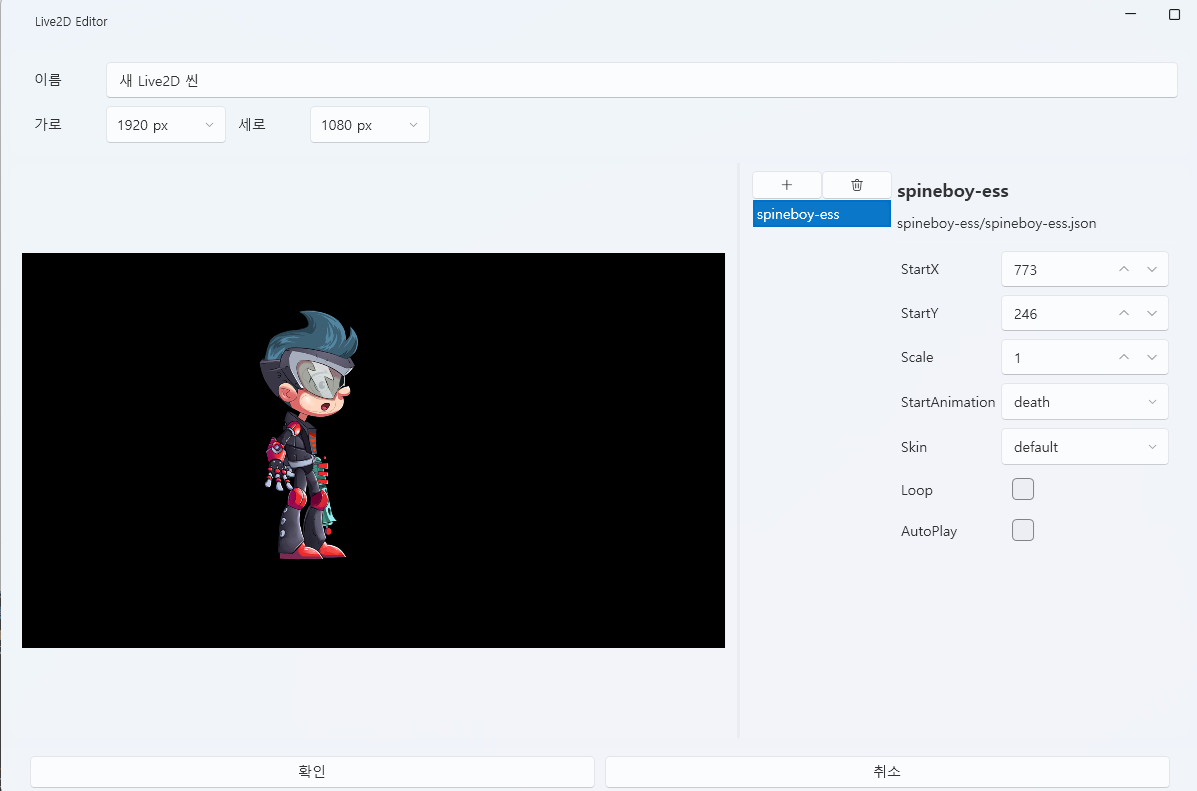

live2d-editor

The Live2D Editor allows you to place multiple Spine objects in one screen
to create a complete character performance scene.

🎛️ Top Panel¶

Item	Description
Name	Name of the current scene being edited.
Width / Height	Set the resolution of the scene (e.g., 1920x1080).
Scene Preview Area	Visually place Spine objects and background elements.
Object List (Right Panel)	Displays all Spine objects included in the current scene.

🧩 Spine Object Management¶

Multiple Spine objects can be added to a Live2D scene.
Each object has its own position, scale, animation, and skin settings.

Item	Description
Name	Name of the Spine object.
StartX / StartY	Set the position coordinates within the scene (in pixels).
Scale	Adjust the size of the character.
StartAnimation	Specify the animation to play on load (e.g., `idle`, `walk`, `attack`).
Skin	Select the visual skin of the Spine model.
Loop	Enable or disable loop playback.
AutoPlay	Automatically start the animation when the scene is loaded.

💡 Tip:
You can drag objects directly in the preview window to reposition them.
Multiple characters can be placed together to create a full scene.

➕ Add / Remove Objects¶

Action	Description
Add (+)	Add a new Spine object to the scene.
Delete (🗑️)	Remove the selected Spine object from the scene.

3. Timeline & Script Integration¶

Live2D scenes can be integrated not only with the timeline,
but also directly with the scripting system — allowing real-time control over
motion, position, scale, and animation progress based on conditions or events.

🎞️ Timeline Integration¶

Live2D scenes can be placed on the timeline
to synchronize with other resources such as sound, events, and UI.

Feature	Description
Drag & Drop	Drag the Live2D scene onto the timeline to place it.
Condition Editing	Set visibility conditions for when the scene should appear.
Timing Adjustment	Manually set the start and end times of the scene.

💡 Examples:
- Display character motion during a specific audio segment
- Trigger facial changes after a UI interaction
- Automatically play animations during a climax event

⚙️ Script Integration¶

Live2D objects can be controlled directly via variables in scripts.
When opening the variable selection window, you’ll see the following structure:

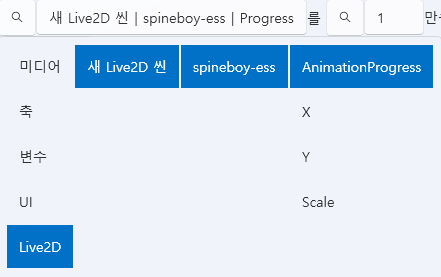

live2d-variable

Component	Description
Live2D Scene Selection	Choose which scene to control.
Spine Object Selection	Select the specific object within the scene.
Property Selection	Choose which variable or property to manipulate.

📊 Controllable Variables¶

Variable	Description
AnimationProgress	Current animation progress (0.0–1.0) — used for time-based control.
X / Y	Adjust object coordinates.
Scale	Adjust the size of the character.

💡 Tip:
By changing Live2D variables dynamically via scripts,
you can smoothly modify a character’s position, size, or expression mid-animation.

🧩 Example Script¶

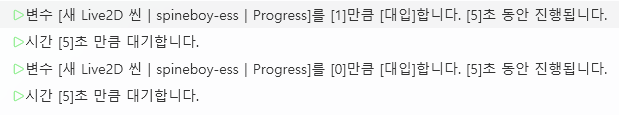

example-live2d-script

🎯 Result:
When executed, the script dynamically adjusts character position, scale,
and animation progress in perfect sync with the timeline.

🔗 Trigger Integration Examples¶

Situation	Trigger Behavior
On button click	Set `AnimationProgress` to 1 to instantly complete the animation.
On event trigger	Change `Scale` from 1.0 → 1.5 for a zoom-in effect.
On timer	Gradually increase `Y` value to move the character upward.

💡 Note:
Live2D variables can be accessed in the same way as UI, sound, or stroke events.
Through the PlayData script system, all event types can be controlled together seamlessly.

🎬 Spine Control Scripts¶

You can control Spine animations and skins within Live2D scenes via scripts.

🕹️ Play Spine Animation¶

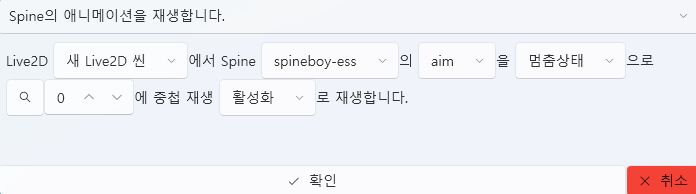

live2d-play-animation

Use this script to trigger specific Spine animations at any timing you choose.

Item	Description
Live2D Scene Selection	Specify which scene to control.
Spine Object Selection	Choose the target Spine model.
Animation Name	The animation to play (e.g., `idle`, `attack`, `death`).
State	Define post-animation behavior (e.g., Stop, Loop, Play Next).
Blend Mode	Enable blending with other animations if desired.
Enable / Disable	Set the animation as active or paused.

💡 Use Cases:
- Play talk motion during dialogue lines
- Switch to happy motion after an event finishes
- Play death animation during a climax scene

🎨 Change Spine Skin¶

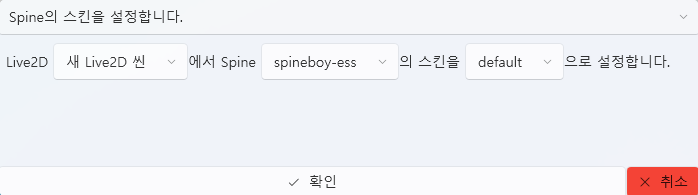

live2d-set-skin

You can change a Spine character’s skin to apply different outfits, expressions, or accessories.

Item	Description
Live2D Scene Selection	Specify which scene to control.
Spine Object Selection	Select the Spine model to modify.
Skin Name	Choose the skin to apply (e.g., `default`, `costume1`, `damaged`).

💡 Use Cases:
- Switch costumes based on story progression (default → battle)
- Change to damaged state upon a hit event
- Display different appearances depending on user choice

⚙️ Extra Tip:
Combine Spine animation control and Live2D variable control scripts
to easily create complex dynamic effects such as “motion + movement + zoom”.

4. File Structure¶

Item	Path
Scene Data	`Asset/Live2D/SceneName.live2D`
Live2D Model Files	`Asset/Live2DModel/`
Spine Model Files	`Asset/SpineModel/`
Textures / Animation Data	Maintains original Spine folder structure
Preview Cache	`Asset/Live2D/`

⚙️ Note:
Live2D scenes are managed exclusively within the project.
If paths are changed or files are moved externally, they may fail to load correctly.
