Intiface Central Connection (Device Bridge Setup)

1. Overview

Intiface Central is a device bridge program used to control various devices.
VoiceScriptPlayer integrates with Intiface to send TCode signals
to devices connected via Bluetooth or USB.

💡 Intiface is the official device hub based on Buttplug.io,
allowing multiple brands of devices to be managed through a single server.

2. Preparation (Before You Begin)

Intiface Central is a separate program from VoiceScriptPlayer.
You must install and start the Intiface server before connecting.

🔧 Installation Steps

  1. Download the latest version from the official Intiface Central website
  2. Install and launch the program
  3. Click the “Start Server” button at the top to activate the server
  4. When the status bar shows “Server Running”, you’re ready to connect

3. Connection Steps

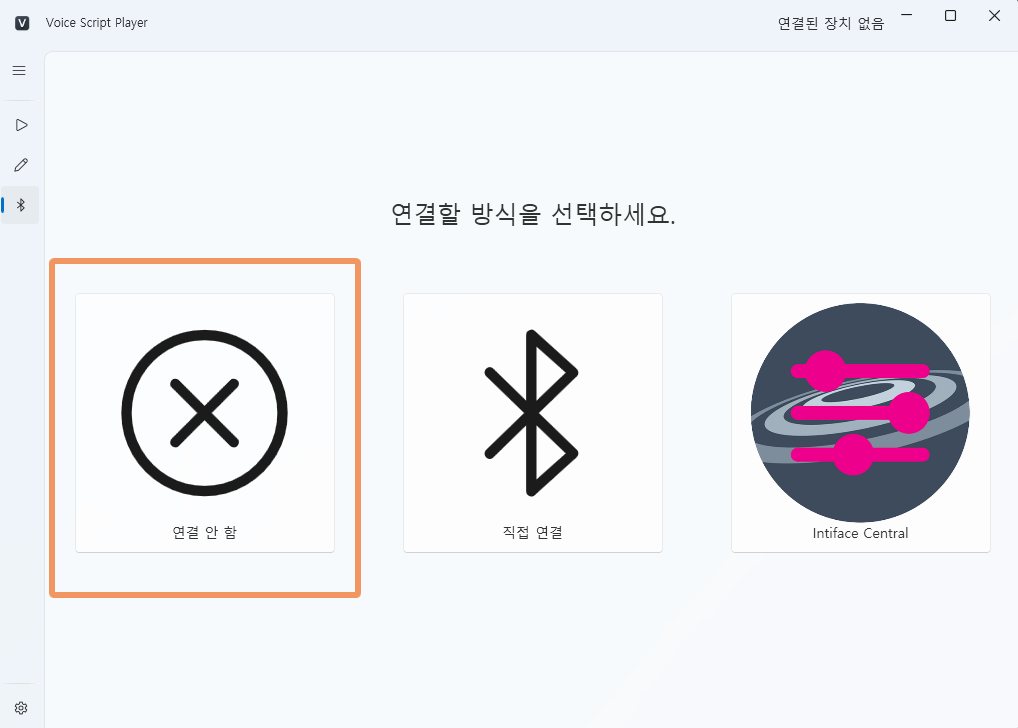

🖱️ Step 1 — Choose Connection Method

Launch VoiceScriptPlayer and click Device Connection from the left menu.
On the “Choose how to connect” screen, select Intiface Central.

From left to right, the options are: “No Connection,” “Direct Connection,” and “Intiface Central.”
Select the third option: Intiface Central.

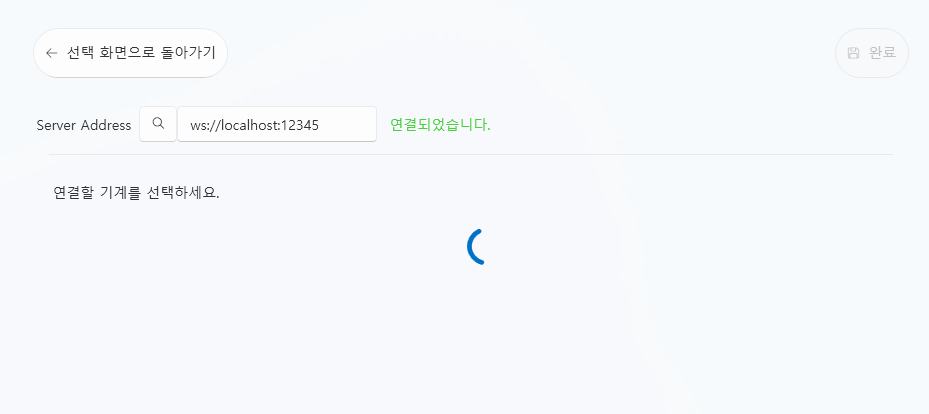

🌐 Step 2 — Verify Server Connection

By default, VoiceScriptPlayer communicates with Intiface via:

ws://127.0.0.1:12345

If Intiface is running, you’ll see “Connecting...” followed by
a message confirming the connection after a few seconds.

✅ When connected successfully, a message saying “Connected” will appear.

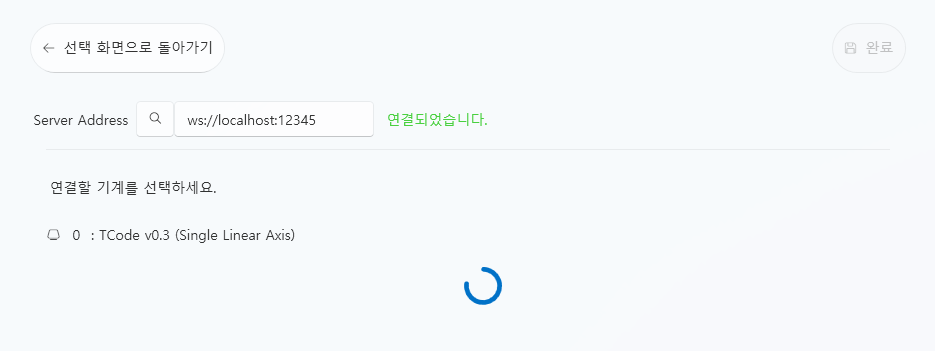

⚙️ Step 3 — Device Detection and Testing

Intiface will automatically begin scanning for devices.
If your device is connected properly, it will appear in the Devices tab of Intiface.

If your device doesn’t appear in the list, additional setup may be required within Intiface.
For example:
- TCode devices require manual port assignment
- The Handy requires an API key to be entered

⚙️ See the Intiface Advanced Configuration Guide for details.

Click Done to save your connection configuration.

💡 After setup, VoiceScriptPlayer will automatically reconnect to Intiface
the next time it is launched.

4. Connection Structure

VoiceScriptPlayer → Intiface Server → Device (Bluetooth / USB)

  • VoiceScriptPlayer sends TCode commands to the Intiface server
  • Intiface transmits signals to the connected devices
  • Multiple devices can be connected and used simultaneously

5. ⚙️ Intiface Internal Configuration Reference

Some devices may require additional configuration within Intiface.
Refer to the table below for details:

Device Type Required Setting Description
TCode Devices (OSR2, SR6, etc.) Specify port number Manually enter the TCode server port in Intiface’s configuration file
The Handy API Key Register your API Key in Intiface’s Handy settings menu
Other BLE Devices Pairing Must be paired in Windows Bluetooth settings before being detected

🔍 For more detailed instructions, refer to:
- Intiface Advanced Configuration Guide
- Intiface Central GitHub Repository
- Buttplug.io Project

6. Troubleshooting

Problem Cause Solution
VoiceScriptPlayer cannot connect to Intiface Intiface not running Start Intiface and click “Start Server”
“Port already in use” error Port 12345 is occupied by another program Change the port in Intiface settings and update the same port in VoiceScriptPlayer
Device not showing in Intiface Bluetooth pairing incomplete Remove and re-pair the device in Windows Bluetooth settings
No response during test Device is paused Click “Resume” in Intiface’s Device tab
Device frequently disconnects Power-saving or insufficient USB power Disable device power-saving or use a wired connection

7. Notes

  • Intiface operates as a local WebSocket server, with port 12345 as the default.
  • You can connect multiple devices simultaneously, but some may not support parallel commands.
  • Intiface runs on Windows, macOS, and Linux,
    while VoiceScriptPlayer currently supports Windows only.
